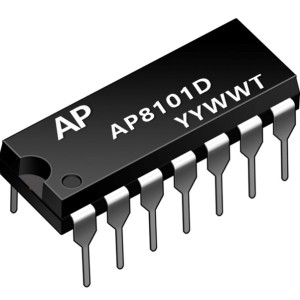

Motor Driver
2 Channel Stepping motor drive IC Stand-by Operation Short-Through Current Restriction Circuit TTL Compatible Inputs Output Current up to 400mA(Peak) Over Current Shutdown Circuit Thermal Shutdown Circuit Under Voltage Lockout Circuit Pull-down Resistance for Input
| Motor Type | Full bridge 2 phase motor driver |
|---|---|
| Function | The IC can control two-phase stepping motor forward and reverse by bipolar driving. It consists of TTL compatible input circuits, dual bridge driver o |
| Output Configuration | Full bridge 2 channels output |
| Interface | PWM |
| Application | Damper motor, Robotics, Arduino |
| Iout(A) | 400mA |
| Vin Max(V) | 17 |
| Mounting Type | Thru-hole |
| Package | DIP-16L |
| status | Mass |
2 Channel Stepping motor drive IC
Stand-by Operation
Short-Through Current Restriction Circuit
TTL Compatible Inputs
Output Current up to 400mA(Peak)
Over Current Shutdown Circuit
Thermal Shutdown Circuit
Under Voltage Lockout Circuit
Pull-down Resistance for Input
