Motor Driver

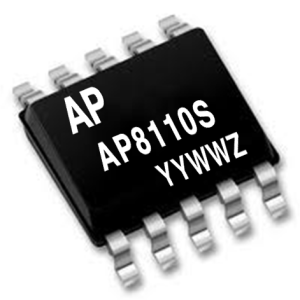

The AP8110 is Stepping motor driver IC. It consists of TTL compatible input circuits, quad bridge driver outputs with fly-back diodes, and stand-by circuit It is optimal for Bipolar step motor driver in 12V System p roducts.
| Motor Type | Full bridge 2 phase Stepping Motor Driver |
|---|---|
| Function | Full Bridge motor driver 4V to 20V up to 1A/CH |
| Output Configuration | Full bridge 2 Channel outputs |
| Interface | PWM |
| Application | Damper Motor, Robotics |
| Iout(A) | 400mA |
| Vin Max(V) | 17 |
| Mounting Type | SMD |
| Package | SOP-8L |
| status | Mass |
One Chip 2 Phase Stepping Motor Driver including two bridge drivers
Very low Current consumption with stand-by mode
For one power supply (The control system power supply is unnecessary)
Short-Through Current Restriction Circuit
TTL Compatible Inputs
Output Current up to 400mA(Peak)
Thermal Shutdown Circuit
Under Voltage Lockout Circuit
Pull-down Resistance for Input
