Motor Driver
Stepping Motor Driver IC
| Motor Type | Full bridge 2 Phase motor driver |
|---|---|
| Function | TTL compatible, Power Save |
| Output Configuration | Full bridge 2 channel outputs |
| Interface | PWM |
| Application | General Purpose, White goods |
| Iout(A) | 400mA |
| Vin Max(V) | 17 |
| Mounting Type | Through Hole |
| Package | DIP-16 |
| status | Mass |

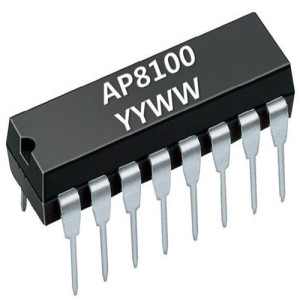

The AP8100 is 2 phase stepping motor driver IC.
It consists of TTL compatible input circuits, dual bridge
driver outputs with flyback diodes, changing circuit
of motor coil drive voltage (Power saving circuit)
and stand-by circuit
